April, 8th 2020 – Reading time: 8 minutes
The CoE Analytics & Sensorics analyses on a regular base available COVID-19 data to give insights into possibilities and constraints of Data Analysis
Established as Think-Tank for statistics and data analysis, the CoE AS normally enables companies to understand themselves better by analyzing their data (process, metrology, manufacturing…) to extract hidden information and parameters.
With this project we want to share our daily analysis about the actual COVID-19 outbreak and about impacts of these statistics. Everyone shall have the opportunity to understand how decisions in politics, society and in our daily life may have an impact and why data can be interpreted in such different ways from different stakeholders.
Any additional comments, adds and corrections are gratefully received.
COVID-19 Key Facts
- Current doubling time: 10.336±0.902 days
- After March 29th the doubling time has increased again, which is a strong indicator for the success of government actions as we could confirm
- Parameters can be extracted from the data, which can be used to calculate models predicting the future behavior
- With the current doubling time, we expect that the current situation will last more than 200 additional days depending on whether a vaccine is available and the restrictions are released or not
Model parameters from past data
To predict the future, we will use standard models. However, they rely on measured data obtained from the actual pandemic. The most relevant parameter used for the model is the infection rate, which is β = ln(2)/τ2, i.e. it is directly connected to the doubling time.

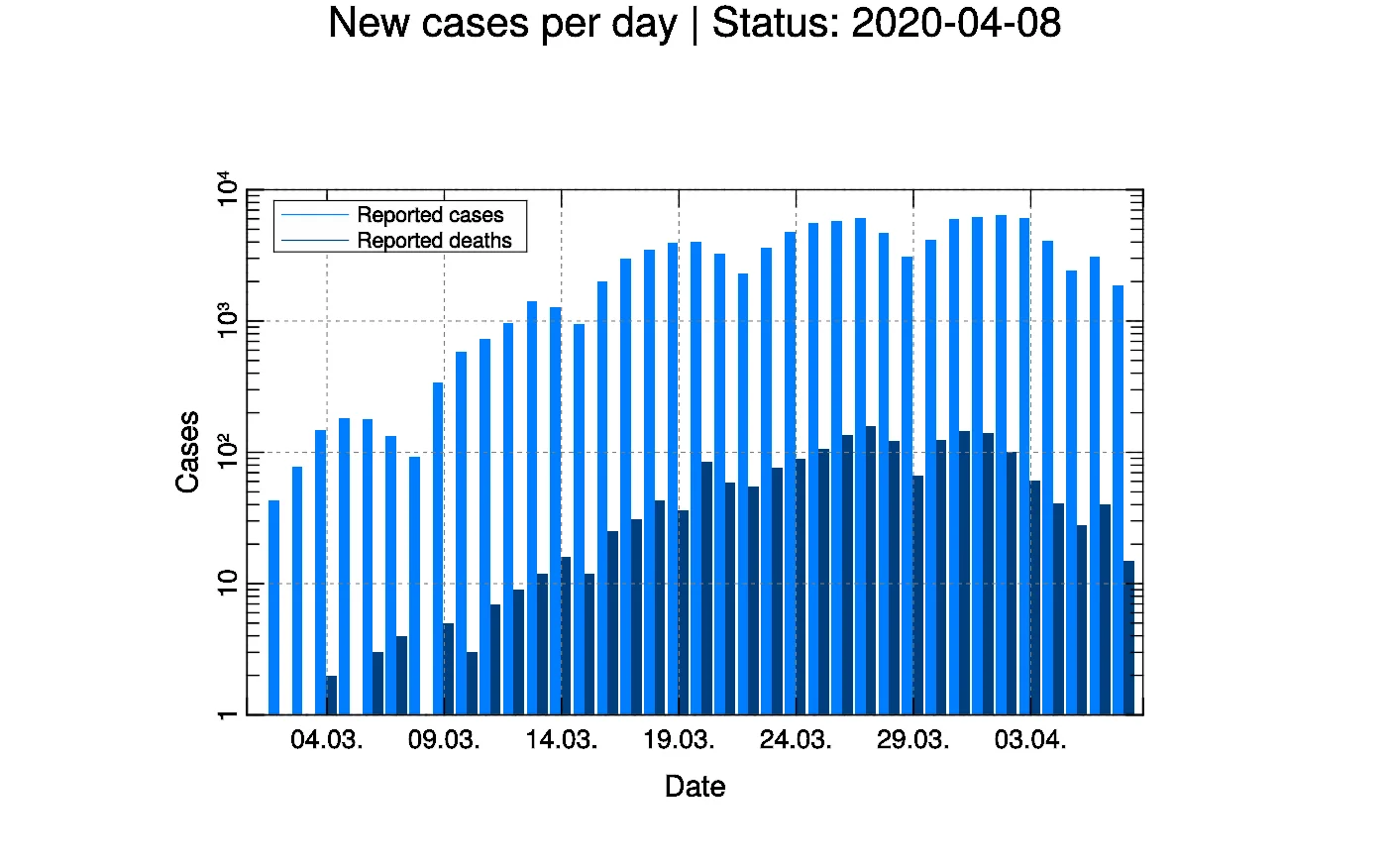

Figures 1 and 2 show logarithmic visualisations of the daily reported and the accumulated COVID-19 cases displayed versus the reporting date. Figure 1 shows the reported COVID-19 cases and deaths against the reporting date. From the March 19th onwards, it can be seen that the growth of newly reported cases decreases, which repeats after March 29th, which is a clear indicator for the success of the contact prohibition as we already mentioned in our latest article.
Extracting the doubling time

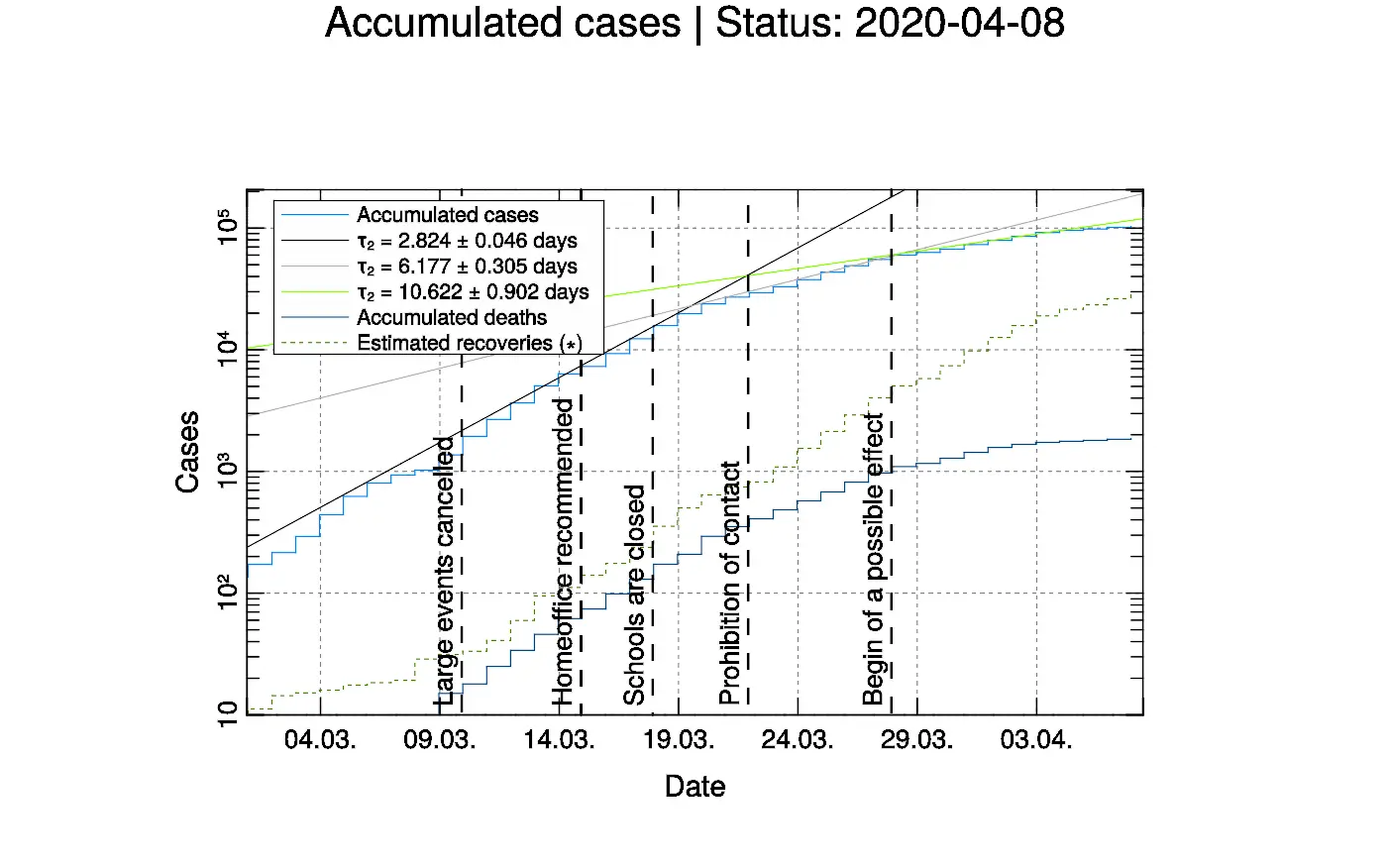

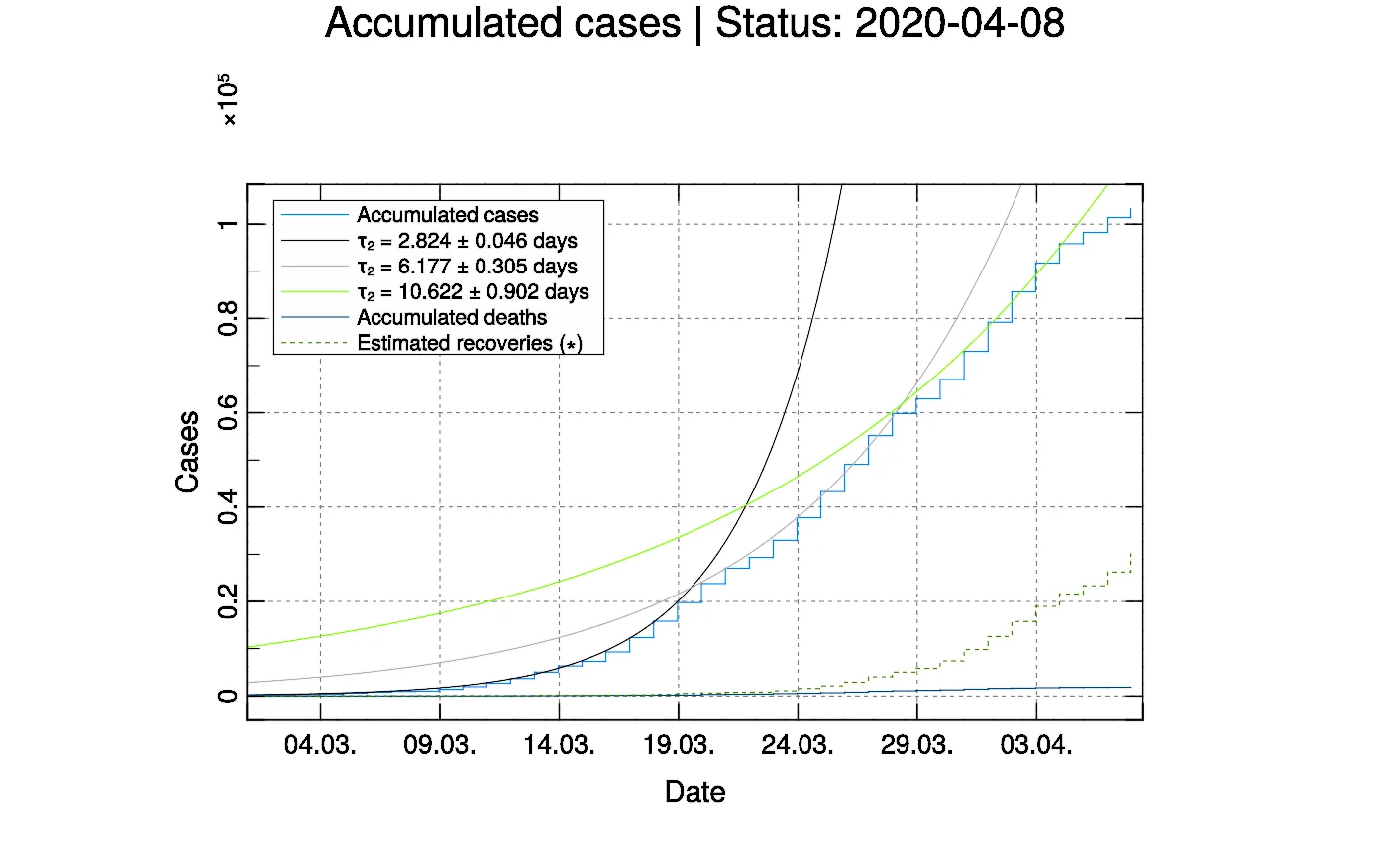

Figure 2 shows the accumulated cases against their respective reporting dates. Here, too, a bending of the curve can be seen from March 19th and again from March 29th onwards.This also coincides with the three fitted exponential curves (note again the logarithmic scale, figure 3 presents the same graph using linear scale), which intersect each other on March 19th and March 28th. The doubling time has increased to τ2 = 10.622 days (β = 0.065 days-1) at the transition from the grey to the green curve, which means that it takes about 10 days for the number of reported infections to double. The target doubling time required from the government and the Robert Koch Institute shall be about 13-14 days. For the reasons see the model calculations below.
Extracting parameters from data
Parameters are important quantities from mathematical models and can influence the behavior of models significantly. Parameters of linear models are quite easy to obtain by applying a linear regression, however most models are not linear. To find the best fitting parameters for those models, applying a non-linear least-squares fitting method will yield the requested values. An important algorithm for least-squares fitting is Levenberg-Marquardt.
Predicting the future
It should actually be obvious that it is not possible to predict the future of a pandemic because it is a far too complex system that depends on too many influencing variables. Among other things, government, the existing health care system, general hygienic conditions and wealth have a great influence on the spread of an infection. In order to make statements about the behaviour of a system in the future, it is necessary to simplify it to such an extent that the number of influencing factors remains controllable. Models are used for this purpose.
Various models are used in epidemiology, including the very simple SI model (susceptible-infected model)  and the somewhat more advanced SIR model (susceptible-infected-removed model) , which we have picked out for the model calculations here. Both models are strong simplifications of reality, but can still give orientation in dealing with COVID-19.
The future according the SI model

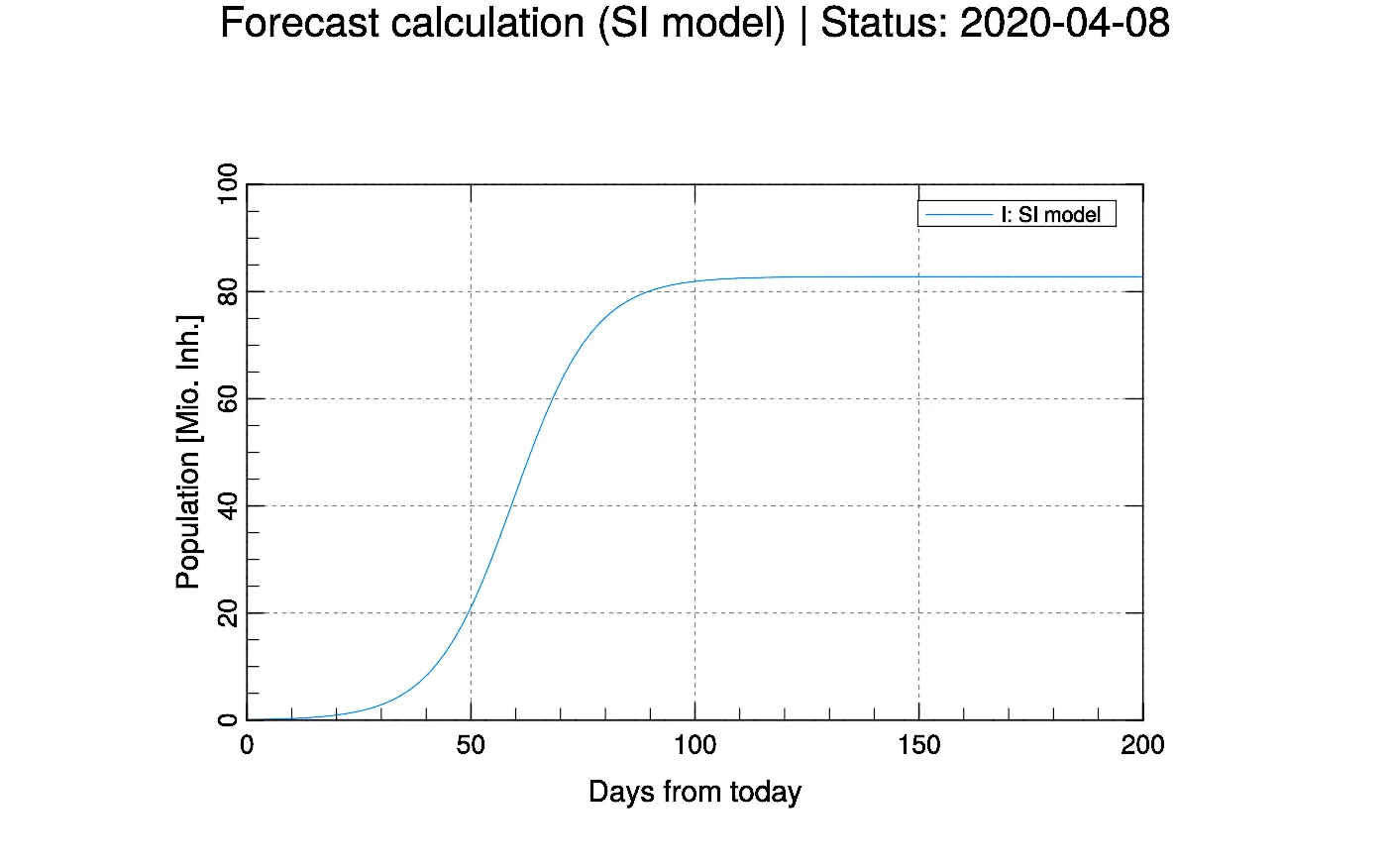

The SI model only considers the spread of an infection. No recoveries from the disease or deaths are shown. The two main influencing variables are the number of infected persons and the number of persons who can be infected (so-called susceptibles), as well as the rate of infection, which was determined beforehand. For the three calculated doubling times from figure 2 we have calculated the corresponding model in figure 4. As can be seen, the spread of the infection slows down with higher doubling times, but this comes at the price of a longer duration for the complete infestation of the society, which is necessary for herd immunity. According to this model, the minimum necessary infestation of 70% (approx. 58 million inhabitants) will be reached in approx. 115 days with the current doubling time of approx. 10 days.
The SIR model yields different results

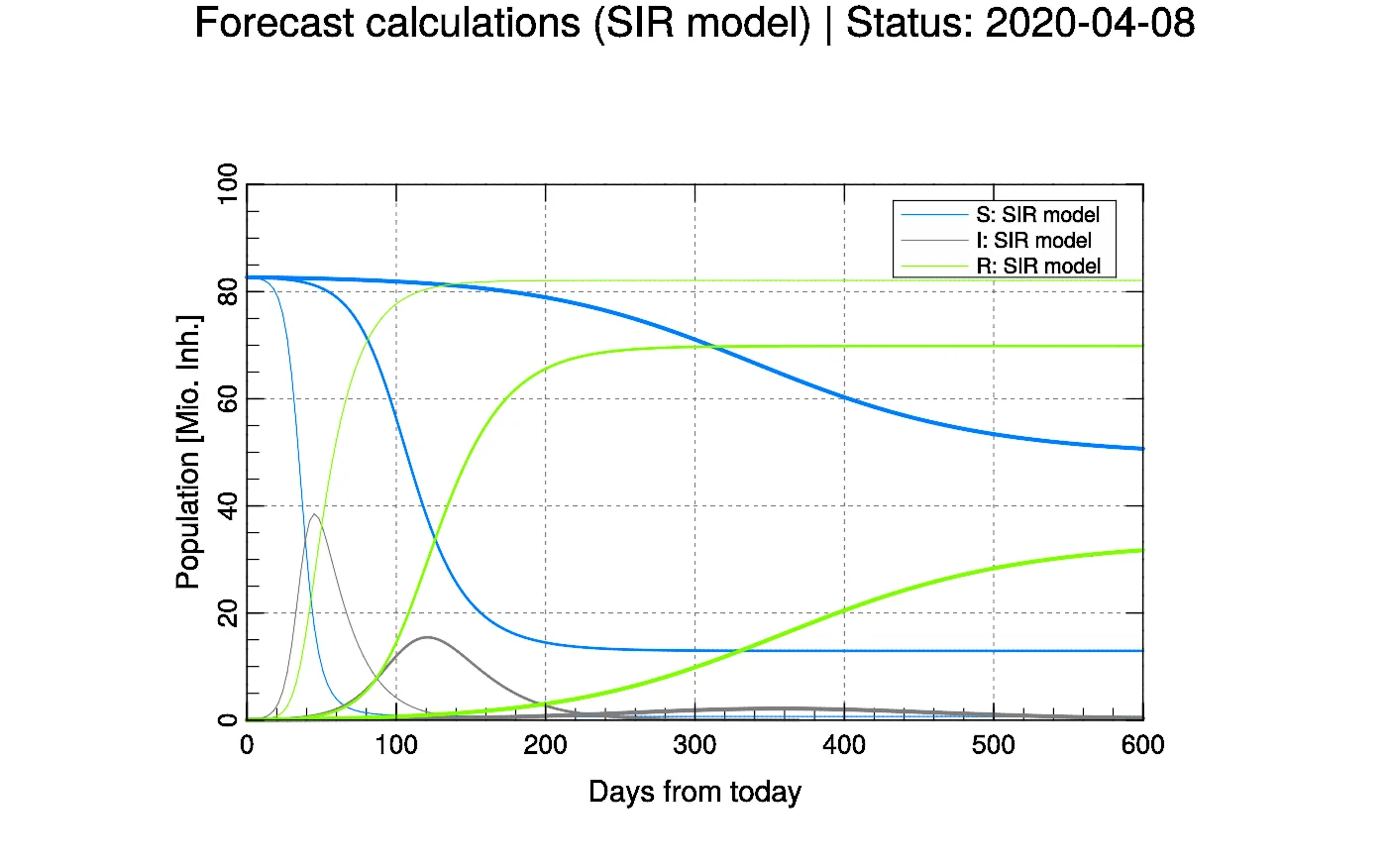

As an extension of the SI model, the SIR model is used, which takes into account the persons removed from the system (by immunity or death). In Figure 5 the model with the three doubling times from Figure 2 was calculated.You can see the susceptible (grey), infected (blue) and already immune persons (green) for the three scenarios. Interesting results of this model are that for each scenario there is a maximum in the curve of infected persons. In addition, this model shows how high the target immunity of the society (in this idealized case) will be. For example, if the disease spreads rapidly, an immunity of almost 100% is achieved, whereas at the current rate of spread we can probably expect an immunity of less than 50% of the population. As a consequence, the current situation will most likely repeat itself with a new wave of COVID-19, if no vaccine is available by then. Flattening the infection curve therefore has its price: we gain time for research but have to live longer with the current restrictions. If we look at the current doubling time of about 10 days, we can expect the maximum number of infections of about 2.5 million patients in about one year.
With the quotient R0 = β / γ, where γ is the recovery rate of the disease, which we assume to 1/20 days-1, the SIR model provides an additional important quantity, the so-called basic reproduction number. This figure indicates the average number of people infected by an infected person. With the current data it is approximately 1.3, so one infected person infects 1.3 more people. In order to prevent the spread of the epidemic, the basic reproduction number must be kept below 1, i.e. less than one additional person is infected per infected person, and the epidemic thus comes to a standstill over time. Calculating the doubling time for a basic reproduction number of 1 (linear spread) gives ln(2) / (1 × γ) ≈ 13-14 days.
Models can fail
Models are based on simplifications and idealizations. No computer has the computing capacity to calculate a real system. Of course, it is also just as impossible to capture all influencing variables at a certain point in time. Therefore, a model also describes an idealized system which, in the best case, approximates reality. Nevertheless, deviations and completely different outcomes are possible in such complex systems as pandemics (a good example of such unexpected behaviors is weather forecasting). In order to stay as close as possible to reality, models must be repeatedly calculated with updated parameters (weather models are calculated several times a day). And last but not least, a model is only as good as the previously determined parameters. If the data source is insufficient, even the best model cannot provide a good forecast. See also our analysis of data sources in the previous article.
Predicting a system's behaviour
In order to be able to predict the behavior of a system, a model must be available that can describe this system mathematically at least in an idealised way. The more advanced and detailed such a model is, i.e. the less simplifications are necessary, the better the model can describe a system and the more reliable are its predictions. However, as the parameters increase, it also becomes more difficult to unify the model and the data already measured, so that the future can be predicted from the measured course of the past.
How can we accelerate your development?
Center of Excellence Analytics & Sensorics
- Core Competences
- Modelling & Simulation
- Measurement & Sensoric
- Statistics & Data Analysis
- Predictive Maintenance
The presented analysis is based upon the data provided by the Robert Koch Institute. This data is updated daily (see status). The statements, which we derived today, may already be invalidated through new data provided tomorrow. We try to keep this analysis as up-to-date as possible.
Because not every health department updates their data during the weekends, data updates provided by the Robert Koch Institute on Sun- and Monday cannot be trusted and will be ignored for our analysis. The next update will be performed on Tuesday.
- Doubling time: 10.622±0.902 days
- Added model calculations to predict the future behavior of the pandemic
- Doubling time: 9.692±0.586 days
- Exponential growth decreased again after March 29th
- Success of the contact prohibition could be confirmed
- Doubling time: 7.213±0.346 days
- Highlighted the COVID-19 key facts
- Doubling time: 6.939±0.345 days
- Doubling time: 6.623±0.417 days
- Added estimated number of recoveries based upon WHO estimation
- Doubling time: 6.231±0.274 days
- Added population and population density of the German federal states
- Added incidences and case densities of the German federal states
- Added an initial analysis on the spread in the federal states
- Doubling time: 5.849±0.172 days
- Added major government actions
- Last two days are now ignored for fit, because their data is quite incomplete
- Added initial analysis about government actions
- Doubling time: 6.182 days
- Initial version
